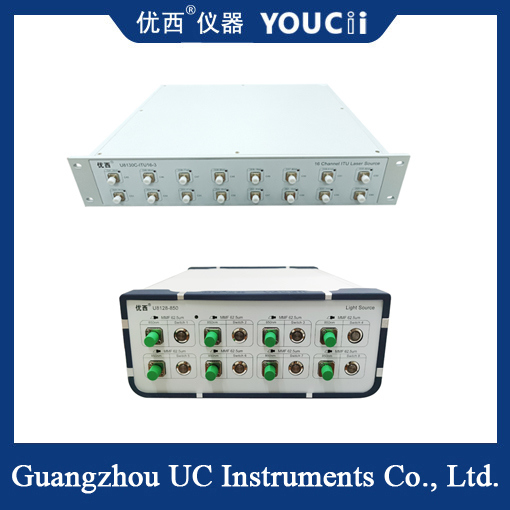

2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths

Оставьте нам сообщение

2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths

2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths
2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths

Большие изображения :  2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths

Подробная информация о продукте:
Place of Origin: 1310/1550nm
Фирменное наименование: YOUCii
Номер модели: U8138/U8130-16
Оплата и доставка Условия:
Количество мин заказа: 1
Цена: negotiate a price
Упаковывая детали: Картон
Время доставки: 21 рабочие дни
Условия оплаты: L/C, D/A, D/P, T/T, Western Union, Moneygram
Поставка способности: месяц 20pcs+per

2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths

описание
оптически соединитель: ПК/APC Измерение: 1U/2U/тип стойки
И WWIDTH@3 дБ: <0,1 нм выходная мощность: ≥8,0 МВт
Управление интерфейсом: USB/RS232 Эксплуатационная температура: 0~ +40 ℃
Выделить:

stainless steel tile trim 10mm

,

professional tile installation trim

,

stainless steel tile edge trim

Product Description:

Point light sources are multi-functional and advanced products designed to meet the demanding requirements of various industries, featuring cutting-edge functions. This product offers a wide range of functions and capabilities, making it an essential tool for professionals in fields such as telecommunications, research and development.


One of the key attributes of point light sources is their diverse control mode options, which provide users with flexibility and convenience. Through interfaces such as USB and RS232, users can easily connect and operate devices in their preferred ways, ensuring seamless integration into existing systems and workflows.


In terms of output power, the point light source offers outstanding performance, with an output power as high as +10 dBm. This power output capability enables users to generate powerful and reliable laser signals for a wide range of applications, ensuring consistent and accurate results.


Specification


Model # U8138/U8130-16
Device Package Butterfly
Optional Wavelength

850/980/1250/1270/1290/1310/1330/1350/1370/1390/1410/1430/

1450/1470/1490/1510/1530/1550/1570/ 1590/1610/1625 nm etc.

Wavelength Accuracy ± 0.5 nm
Output Power ≥8.0mW
Connector Type FC/APC (Other Adaptor Can Be Customized)
Bandwidth@3 dB < 0.1 nm
Bandwidth@20 dB < 0.5 nm

Output Power Stability within 15mins

≤±0.005 dB

Output Power Stability within 8 hrs

≤±0. 05 dB
SMSR > 40 dB
Operation Temperature 0~ +40 ℃
Storage Temperature -30~+80 ℃
Dimensions 235 mm W, 55 mm H, 320 mm D
Weight 3.0 kg

In conclusion, the point light source is a top-notch product that combines advanced functions, reliable performance and user-friendly design to meet the diverse needs of professionals in different industries. Whether used in telecommunications, research laboratories or development facilities, this product is a powerful and multi-functional tool that consistently provides outstanding results.


2/4/6/8/18 Multi-wavelength Point Light Sources With Customizable Wavelengths 0
